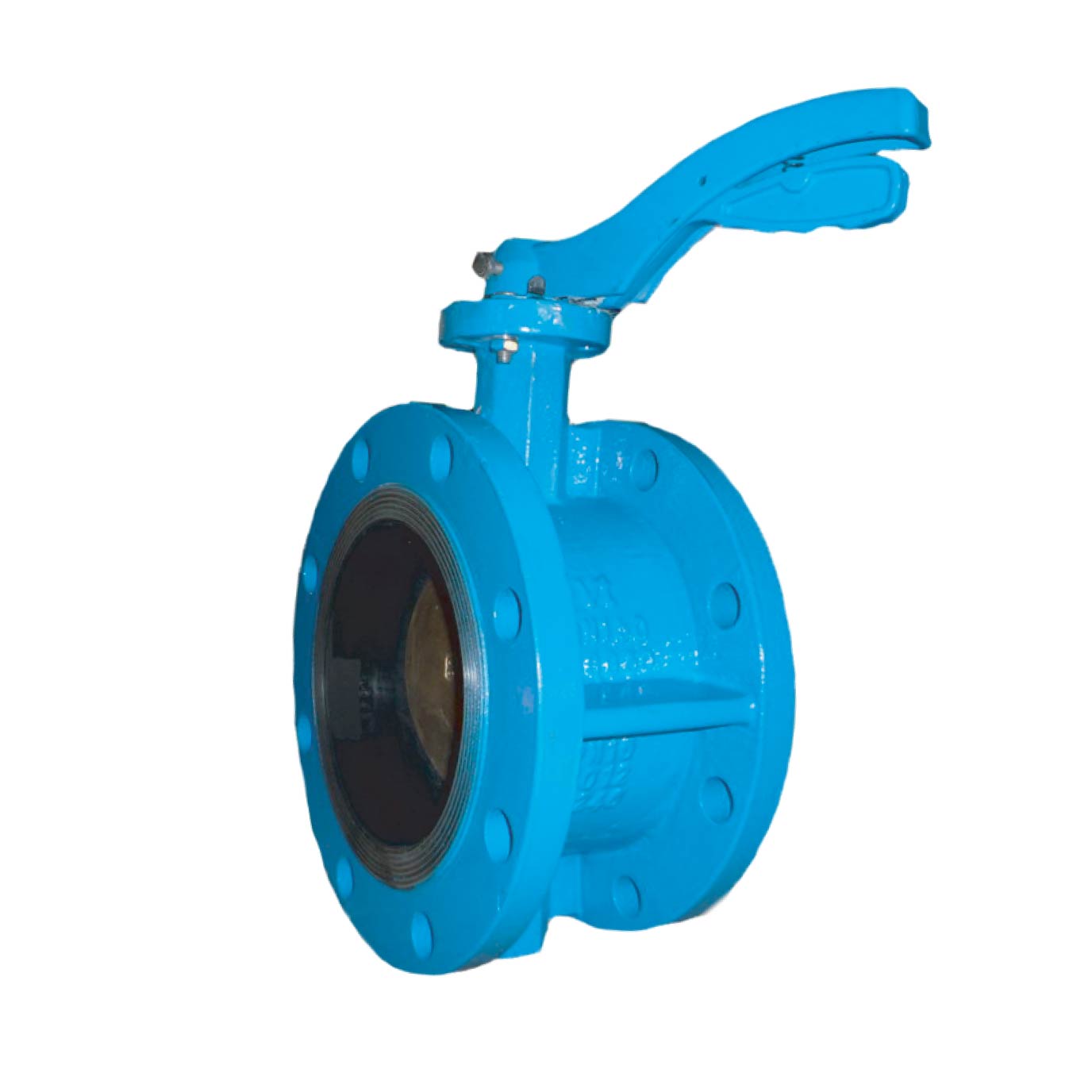

Double Flanged Butterfly Valve
SPECIFICATIONS
| Design Standard | : | API 609 / DIN 3354 / EN 593 / BD 5155 |
| Size Range | : | 3" - 88" |
| Pressure Rating | : | PN10 / PN16 / Class 150 |
| Working Temperature | : | -10˚C ~ +80˚C 14˚F ~ +176˚F |
| End Connection | : | ANSI B16.1 / ANSI B16.5 / ASME B16.47 / DIN 2501 / BS 4505 / EN 1092-2 |
| Face-to-Face | : | ISO 5752 SERIES 13/14 / DIN 3202-F4 |
| Test & Inspection | : | API 598 / DIN 3230 / EN 1266-1 |
| Materials | ||
| Body | : | Ductile Iron / WCB / Stainless Steel |
| Disc | : | Ductile Iron / Al-Bronze / Stainless Steel / Nylon / PTFE |
| Seat | : | EPDM / NBR / Viton |
| Document | Type | Download |
|---|---|---|
| Double Flanged Butterfly Valve | English |
