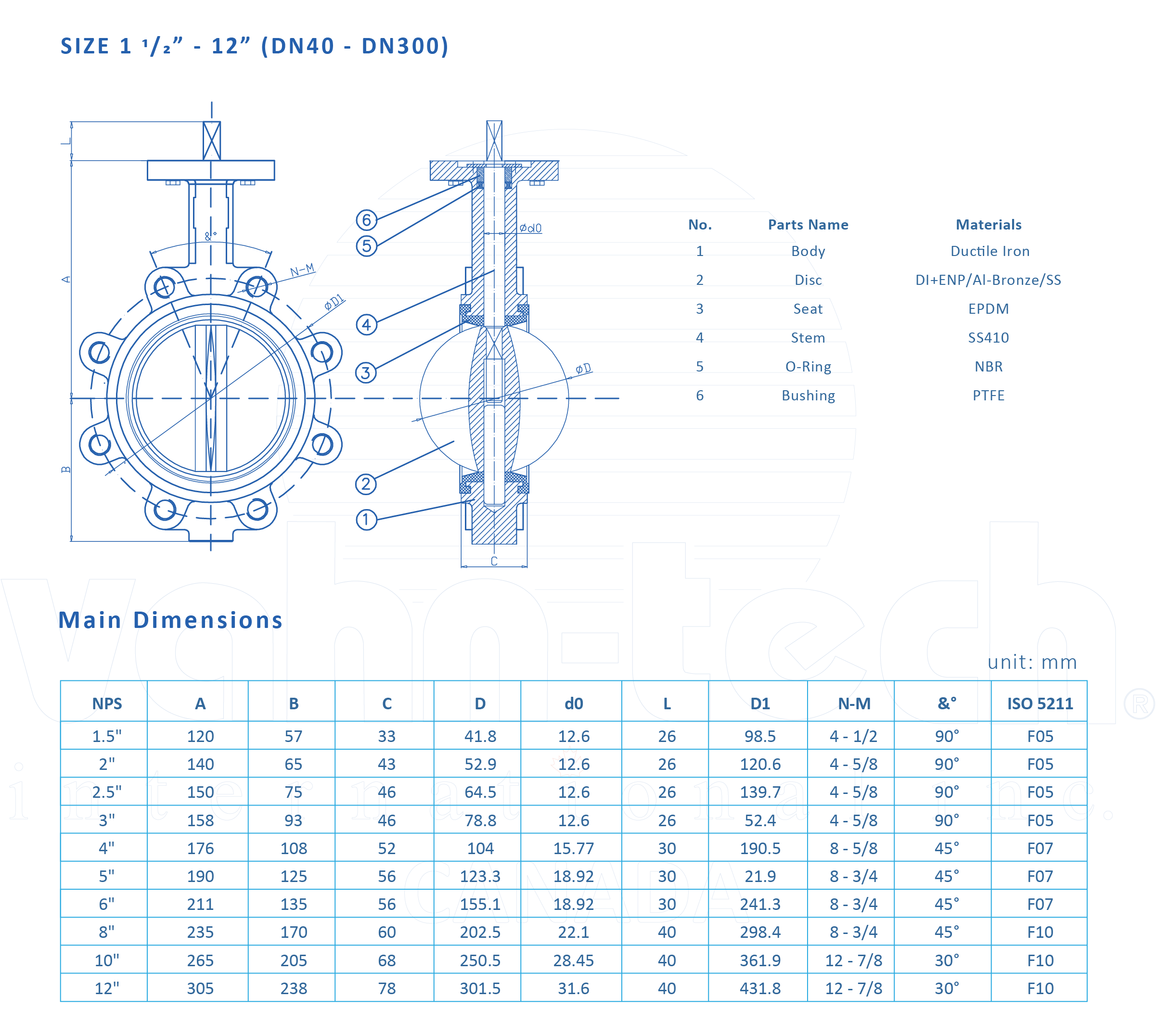

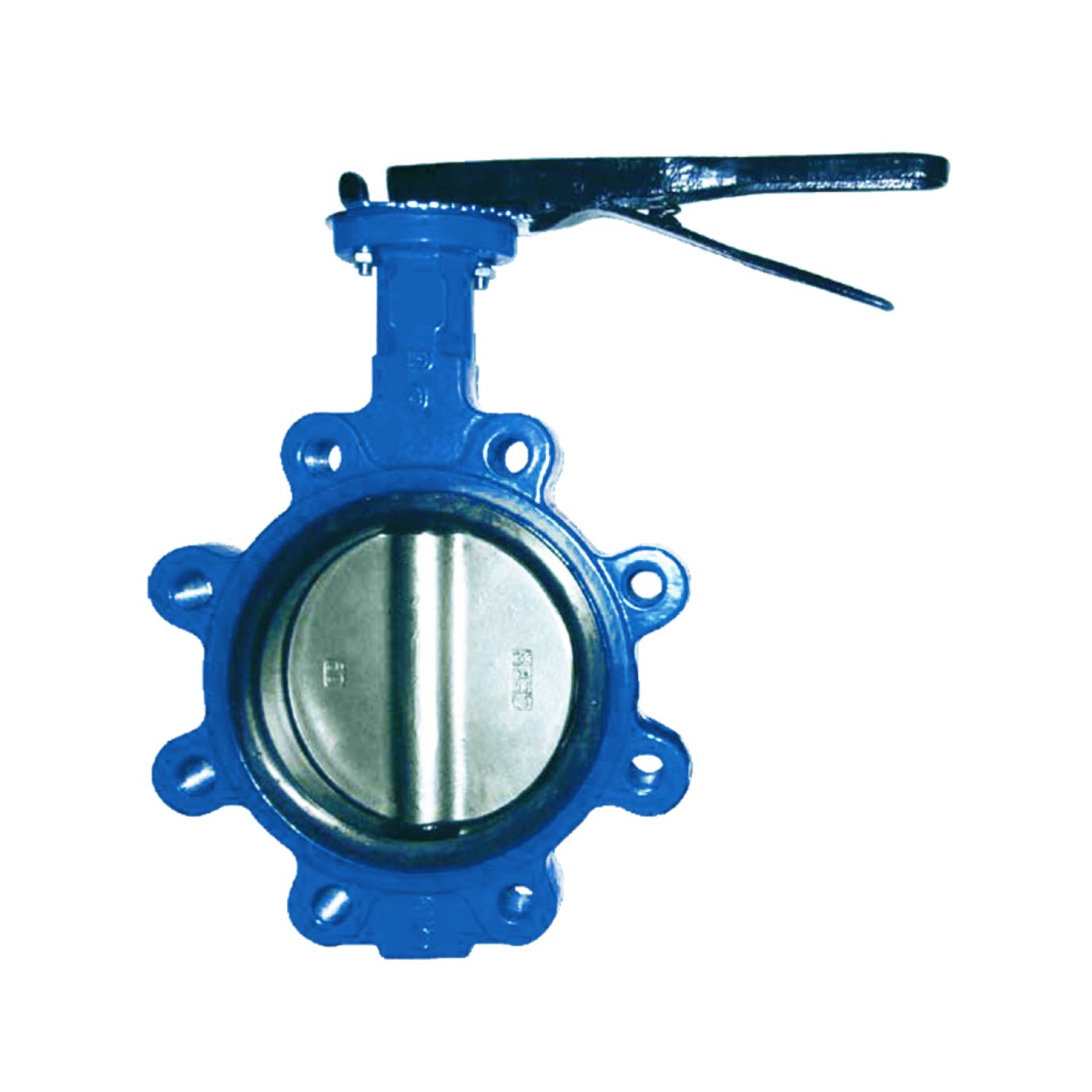

Lug Type Butterfly Valve
SPECIFICATIONS
| Design Standard | : | API 609 / BS 5155 / EN 593 |
| Size Range | : | 1 1/2" - 72" |
| Pressure Rating | : | Class 150 / PN10 / PN16 |
| Working Temperature | : | -10˚C ~ +130˚C 14˚F ~ +266˚F (depends on seat materials) |
| End Connection | : | ANSI B16.1 / ANSI B16.5 / ASME B16.47 / DIN 2501 / BS 4505 |
| Face-to-Face | : | API 609 / DIN 3202 / EN 558-1 / ISO 5752 |
| Test & Inspection | : | API 598 |
| Materials | ||
| Body | : | Ductile Iron / WCB / Stainless Steel |
| Disc | : | Ductile Iron / Al-Bronze / Stainless Steel / Nylon / PTFE |
| Seat | : | EPDM / NBR / Viton |
| Document | Type | Download |
|---|---|---|
| BFV-Lug Type.pdf | English |
