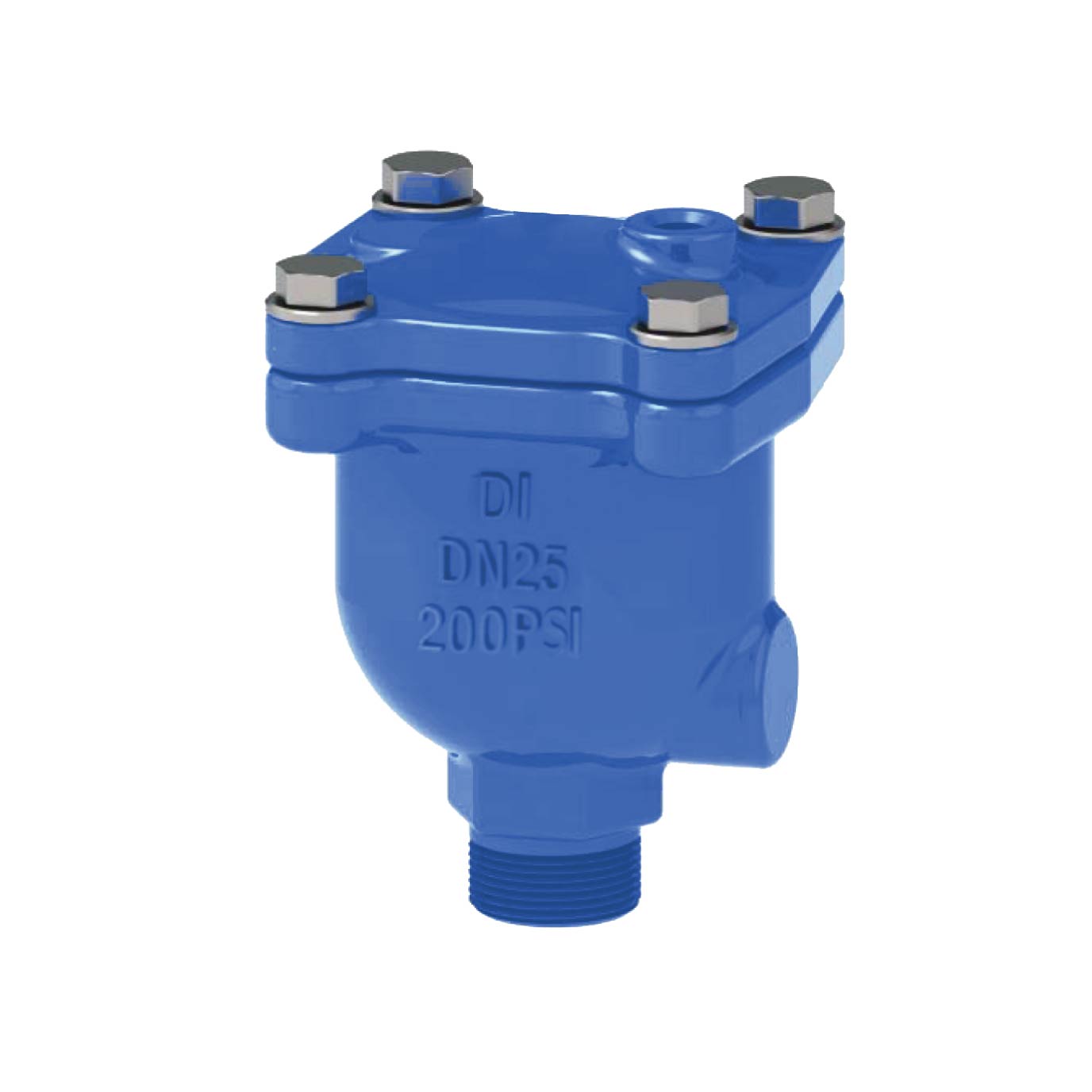

Single Orifice Air Release Valve
SPECIFICATIONS
| Size Range | : | 1/2" – 1" |
| Pressure Rating | : | 200 / 300 psi |
| Working Temperature | : | -10˚C ~ +80˚C 14˚F ~ +176˚F |
| End Connection | : | NPT Male |
| Materials | ||
| Body | : | Ductile Iron |
| Seat | : | Rubber |
Features
High strength ductile iron body is used for reducing the weight and improving the valve's long-term durability.
Simple mechanism with lever and float.
The float and internal mechanism are made of SS304 for extended service life.
All iron parts are coated inside & outside with fusion bonded epoxy for corrosion resistance as per AWWA C550.
Male connection can easily be connected to isolated valves, no need for further nipples.
End connection can be BSPT or NPT thread.
| Document | Type | Download |
|---|---|---|
| VT-ARV-Single Orifice Air Release Valve_AN.pdf | English |
