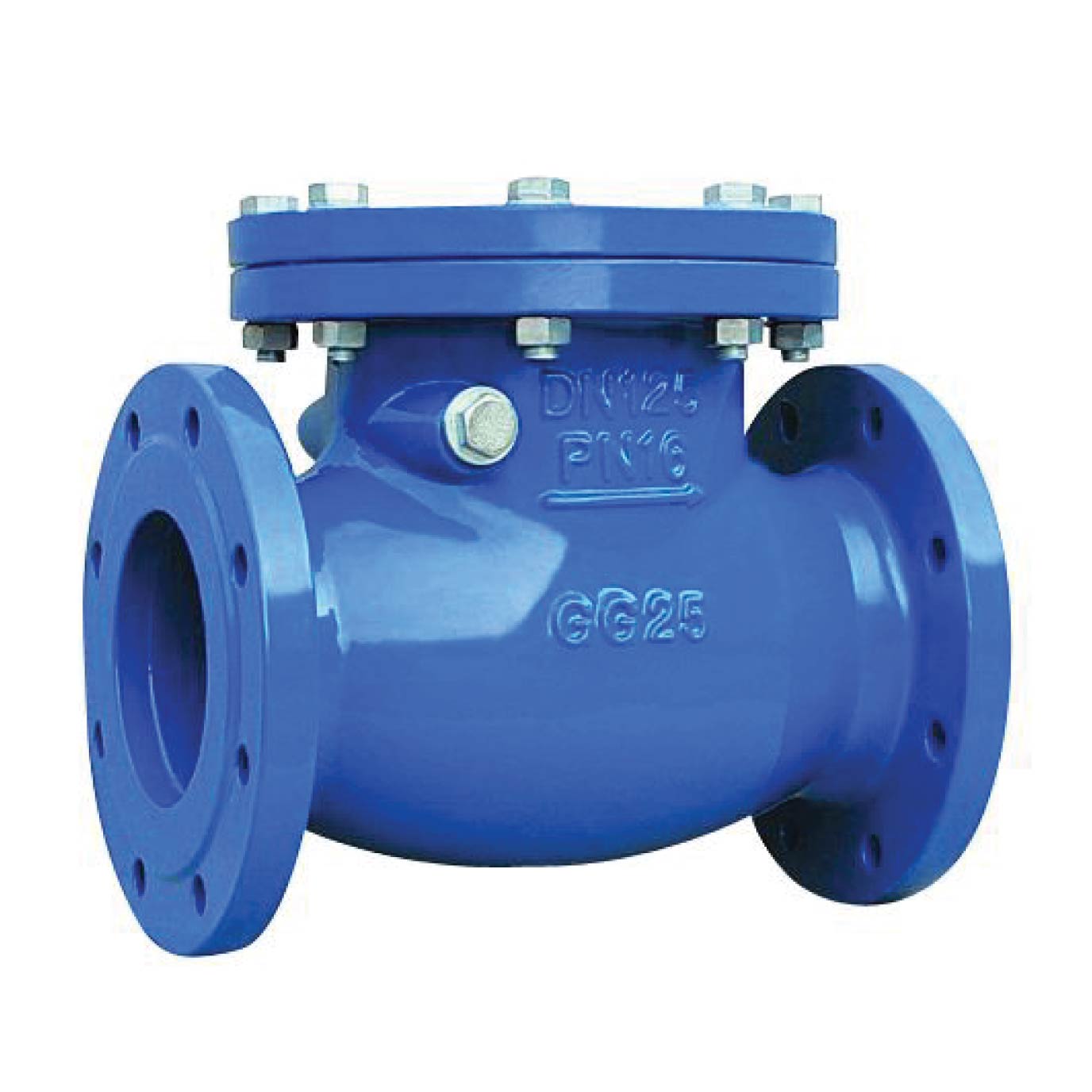

Swing Check Valve
SPECIFICATIONS
| Design Standard | : | AWWA C508 / MSS SP71 |
| Size Range | : | 2" - 24" |
| Pressure Rating | : | 200 psi |
| Working Temperature | : | -10˚C ~ +80˚C 14˚F ~ +176˚F |
| End Connection | : | ANSI B16.1 / ANSI B16.5 |
| Face-to-Face | : | AWWA C508 |
| Test & Inspection | : | AWWA C508 / API 598 |
| Materials | ||
| Body | : | Ductile Iron |
| Disc | : | Ductile Iron |
| Seat | : | EPDM / Bronze |
Features
Swing Check Valves are fully compliant with AWWA C508 ad MSS SP71 standards.
High strength ductile iron body used for lowering the weight and improving long term durability.
All iron parts are coated inside & outside with fusion bonded epoxy for corrosion resistance per AWWA C550.
Available with either metal seat or resilient seat.
Bronze Seat Ring reduces wear and tear.
Valve shall be installed in the horizontal position due to gravity operation of the disc.
Simple design, top entry cover allows for access for cleaning, replacement and maintenance easy.
NSF61 certified valve.
| Document | Type | Download |
|---|---|---|
| VT - CV - Swing Check Valves_AN.pdf | English |
