Forged Check Valve
SPECIFICATIONS
| Design Standard | : | API 602 / BS 15761 |
| Size Range | : | ½” – 2” |

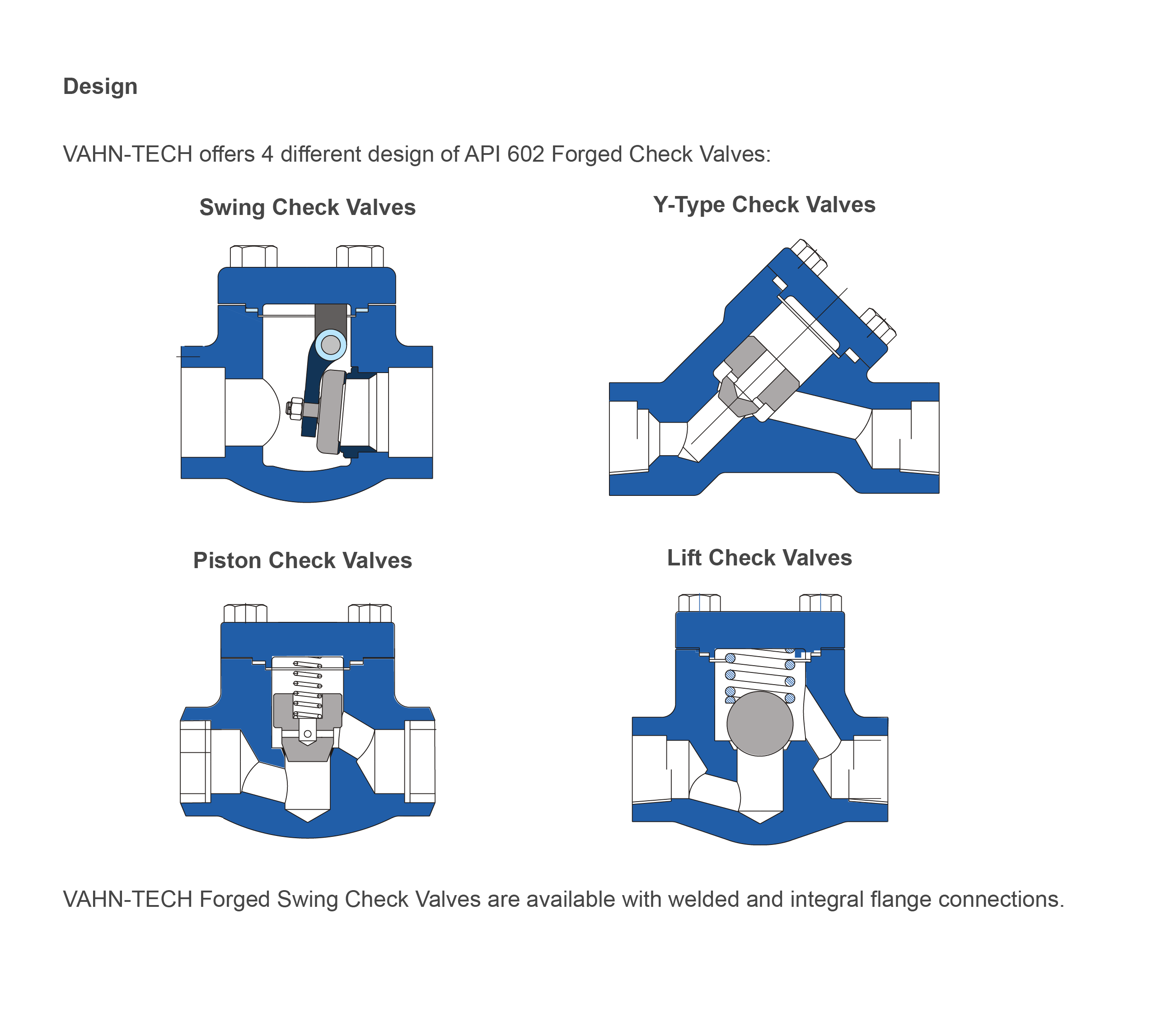

| Design Type | : | Swing Check / Piston or Lift Check / Y-Type |
| Pressure Rating | : | Class 150 – 2500 Class 800 |
| Working Temperature | : | -196˚C ~ +650˚C -320˚F ~ +1200˚F |
| Bonnet Design | : | Bolted Bonnet / Welded Bonnet |
| End Connection | : | ANSI B16.5 - Flange ASME B16.25 - Butt-Weld ASME B16.11 - Socket-Weld / Threaded Ends |
| Face-to-Face | : | ASME B16.10 |
| Test & Inspection | : | API 598 / API 6D |
